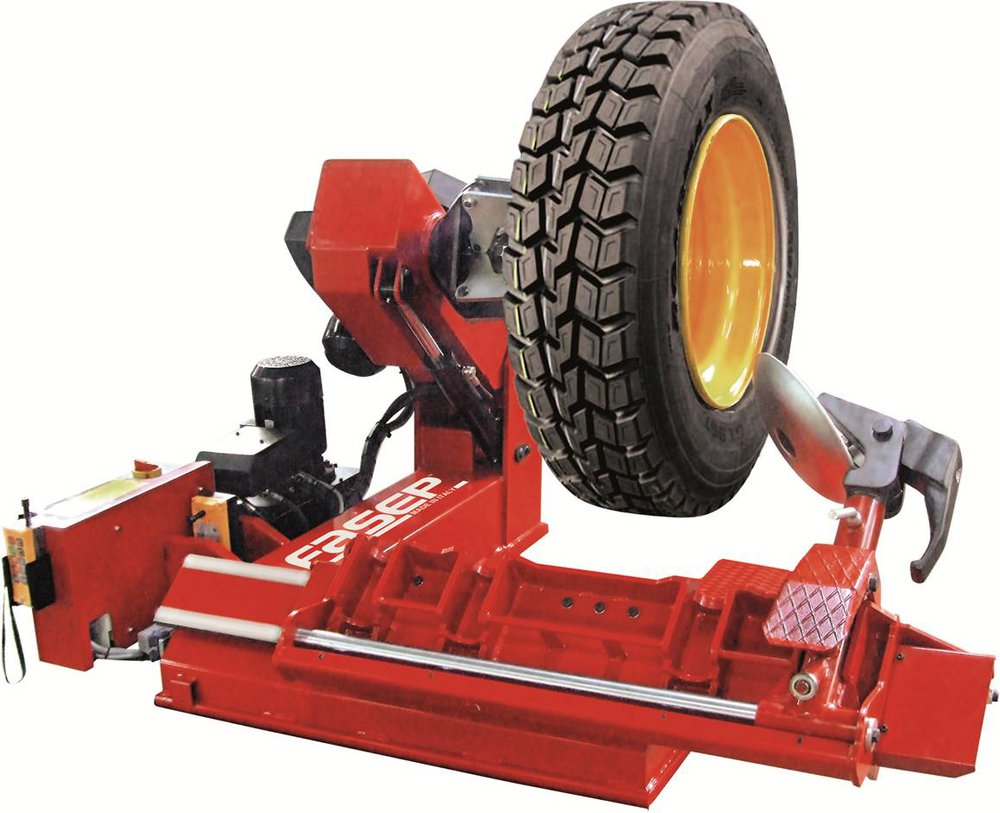

Universal truck tire changer (commercial) is a professional unit, designed for tire service shops with heavy work load of commercial trucks wheels (up to 27").

Möguleikar

- Automatic Truck Tyre Changer for Trucks

- Suitable for groove rims and split ring rims

- Suitable for normal and tubeless tires

- Self-centering hydraulic chuck with 4 clamping jaws

- 1 speed Motor

- Clockwise and anticlockwise rotation of the chuck

- Universal toolhead

- Hidraulic lifting of chuck (up and down)

- Electro-Hydraulic displacement (left right ) of the arm that contains the toolhead.

- Toolhead with manual lifting and rotation

- Handy remote control (wireless)

- Hydraulic pump motor 1,1 kW (1,5 Hp)

- Safety valve on hydraulic circuit

- Chuck Gearbox motor 1,5 kW (2,0 Hp)

- Bead breaking force (in/out) 18.3 kN

- Max rotation torque 2,0 Kn

- Rim central hole min 135 mm

- Max wheel weight 1200 kg

- Rim max diam. 14-26"

- Max wheel diam 1380 mm (54")

- Max wheel width 780 mm (30,5")

- Noise < 70 dB (A)
