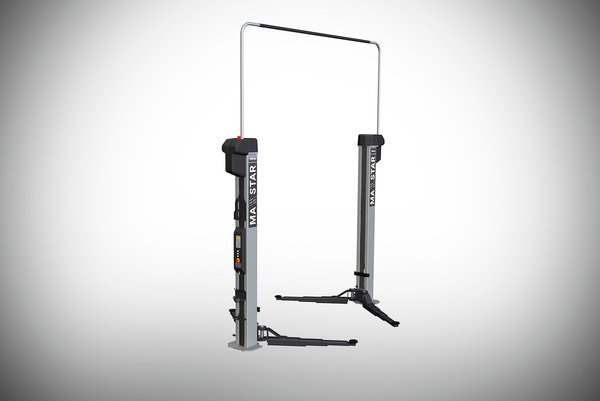

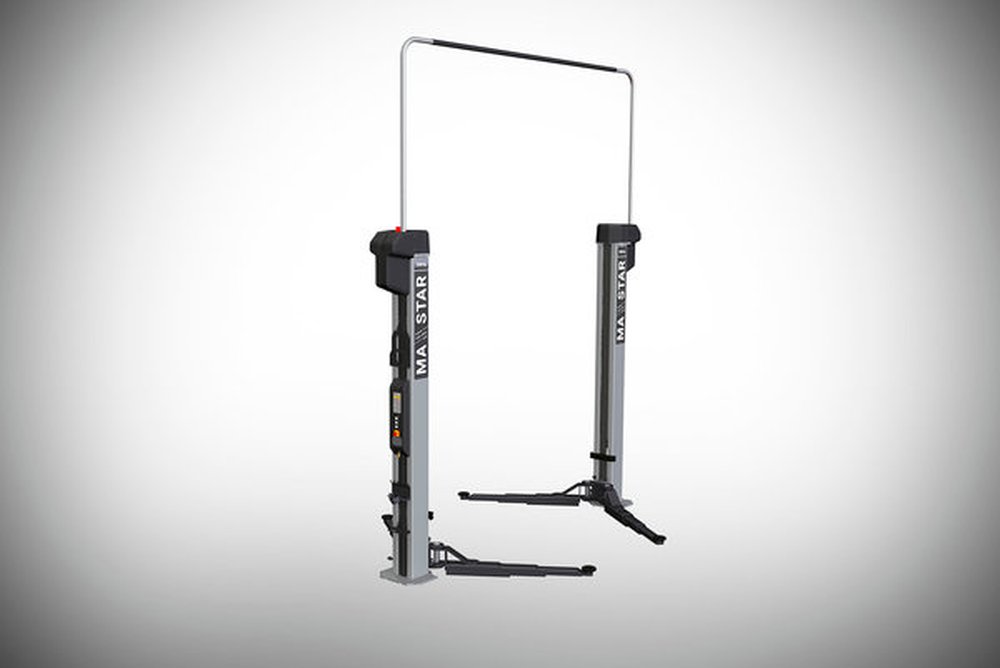

MA STAR 3.5 S
Frá Maha - Vörunúmer:
Load capacity 3500 kg triple safety Symmetrical columns for small overall width Symmetrical support arms Support arms swivelling 95° Variable installation width High-quality powder coating: Window grey, RAL 7040 (columns) Anthracite grey, RAL 7016 (lifting carriages, support arms)
Tæknilýsing
- Load capacity CE
- 3500 kg
- Lifting height max.
- 1995 mm
- Durchfahrbreitebereich
- 2200 mm - 2400 mm
- Raising / Lowering time (load-dependent) approx.
- 40 s / 40 s
- Total bottom clearance
- 100 mm
- Disc adjustment range
- 80 mm - 110 mm
- Reach of support arms
- 630 mm - 1240 mm
- Total width
- 3557 mm
- Outside dimension´ground plate
- 3307 mm
- Äußerer Säulenweitebereich
- 3097 mm - 3097 mm
- Inside columns
- 2700 mm
- Column height
- 2943 mm
- Height overall max. (with cable tray)
- 4499 mm
- Motor power
- 2 x 3,0 kW
- Fuse gG
- 16 A
- Power supply
- 3/N/PE 400 V 50 Hz
- Dimensions packaging (L x W x H)
- 0 mm x 0 mm x 0 mm
- Weight
- 650 kg
- Required concrete grade
- C 20/25
- Geforderte Mindesbetonplattendicke ohne Estrich min.
- 190 mm
- Schwenkbereich Tragarme
- 95 °
